Laser Dog Tag Fiber Laser Engraving Machine Stainless Steel Brass Copper Aluminium
Machine Profile
Fiber Laser Marking Machine adopted original fiber laser source and high speed galvanometer scanning system with stable power, excellent optical mode, beam with high quality, fast marking speed, good effects and high efficiency, it can meet the demand for mass production.
Machine Features
1 Advanced intelligent core,upgraded control card
2 One PC can control several machines at the same time
3 Tablet PC can be as a controller by wireless interface
4 Small bulk,light weight,working speed increased by 20%
5 Intelligent control,easy operation,labor cost saving
Technical Parameters
| Type | LB-MF10 | LB-MF20 | LB-MF30 |
| Laser Power | 10W | 20W | 30W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Beam quality | M2≤1.3 | M2≤1.3 | M2≤1.3 |
| Laser repetition rate | 20KHz~80KHz | 20KHz~80KHz | 20KHz~200KHz |
| Working area | 50×50mm~110×110mm | 70×70mm~175×175mm | 70×70mm~200×200mm |
| Marking speed | ≤7000mm/s | ≤8000mm/s | ≤8000mm/s |
| Min.characters | 0.15mm | 0.15mm | 0.15mm |
| minimum line width | 0.01mm | 0.01mm | 0.01mm |
| Repeated precision | ±0.001mm | ±0.001mm | ±0.001mm |
| Cooling system | air-cooled | air-cooled |
Standard Accessories (Fiber Laser Marking Machine)
(1) A set of 20W / 30W Fiber Laser Device (Raycus) or IPG Fiber Laser
(2) A set of Scanning System (Galvotech)
(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
(6) Motion control card
(7) A set of marking control system
(8) A set of marking software
(9) An industrial computer
(10) A red laser pointer
(11) A pedal switch
(12) Working table(300mmX300mm)
(13) Laser power supply
(14) Operation Manual Training Video

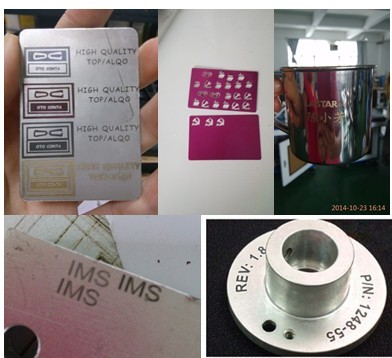

Application Fields
A . Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.
B . Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.
After-Sales Service
1. All of our machine will be fully-checked by our quality control department before the shipment. We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).
2. Training 1-2 technician with free.
3. Training details: operation principles, system and structure, safety and maintenance, software, the processing technique, and so on.
4. Numerous feedback from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
a.We guarantee that we will give you a clear reply within 24 hours.
b. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
c. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
d. We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone.
